DME A 7.875 series mold base

NOTE: Rotary ground mold plates are also avaIlable in sizes and steel types shown. Add "RGM" to end of catalog number and delete "A" (example: 88A-1 7-27 becomes 88-1711GM or 88-27RGM depending on tickness desired.)

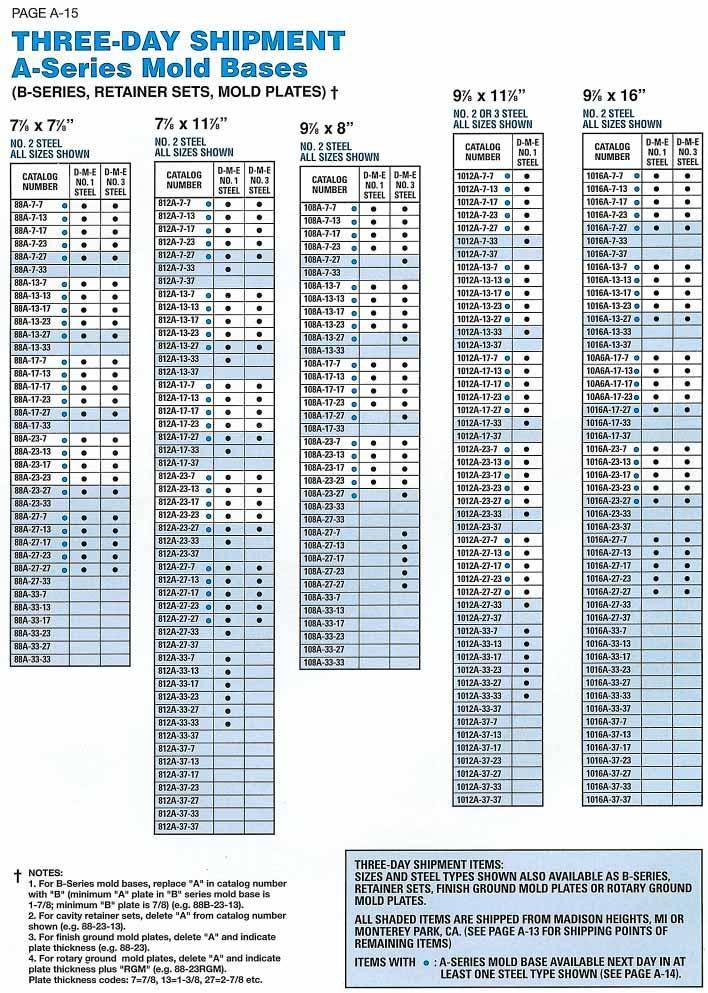

THREE-DAY SHIPMENT A-Series Mold Bases
THREE-DAY SHIPMENT ITEMS:
SIZES AND STEEL TYPES SHOWN ALSO AVAILABLE AS B-SERIES.
RETAINER SETS, FINISH GROUND MOLD PLATES OR ROTARY GROUND MOLD PLATES.
ALL SHADED ITEMS ARE SHIPPED FROM MADISON HEIGHTS, MI OR MONTEREY PARK, CA. (SEE PAGE A-13 FOR SHIPPING POINTS OF REMAINING ITEMS)
ITEMS WITH . A-SERIES MOLD BASE AVAILABLE NEXT DAY IN AT LEAST ONE STEEL TYPE SHOWN (SEE PAGE A-14).
DME A series mold bases

NOTES:
1. For B-Series mold bases, replace A In catalog number with "B" (minisnunl "A" plate In "B" series mold base Is 1-7/8; mlninum "B" plate Is 7/8) (e.g. 888-23-13).
2. For cavity retainer sets, delete "A" from catalog number shown (e.g. 88-23-13).
3. For finish ground mold plates, delete "A" and Indicate plate thicknese (e.g 88-23).
4. For rotary ground mold plates, delete "A" and Indicate plate thIckness plus "RGM" (e.g. 88-23RGM).
Plate thickness codes 7=7/8; 13=1-3/8.27=2-7/8 etc.
DME A series mold bases

WHEN ORDERING, PLEASE SPECIFY:
1. Quantity & Catalog Number
2. No. 1, No.2 or No.3 Steel
3. Locating Ring Catalog Number
4. Type of Sprue BushIng: "U", "UV"or "UR" Series (see page K 15)
5. E, Oand A Dimensions O=5/32 7/32 or 9/32.
R=1/2 or 3/4(U Series)
1/2 ("UV" Series Standard)
3/4("UV" Series Special)
No Spherical Radius on "UR" Series
NOTE: For "A" Plates 3-3/4" or thicker, specify "B" Series Sprue Bushwig
(1" diameter stem)
6. Method of Shipment: 1.1-3/8 Top Clamping Plate if desired (N/C) DME A series mold bases
